Detailed Applications of Weather Stations in the Photovoltaic Power Generation Industry

Detailed Applications of Weather Stations in the Photovoltaic Power Generation Industry

Introduction

In the rapidly growing photovoltaic (PV) power generation industry, weather stations have become vital tools for improving the performance, reliability, and efficiency of solar energy systems. Weather stations monitor various environmental parameters—such as solar irradiance, temperature, wind speed, humidity, and atmospheric pressure—that directly affect the functioning of photovoltaic systems. This article will explore in-depth how weather stations are used in the solar energy industry and how they contribute to maximizing the efficiency of solar power plants.

1. Monitoring Solar Irradiance

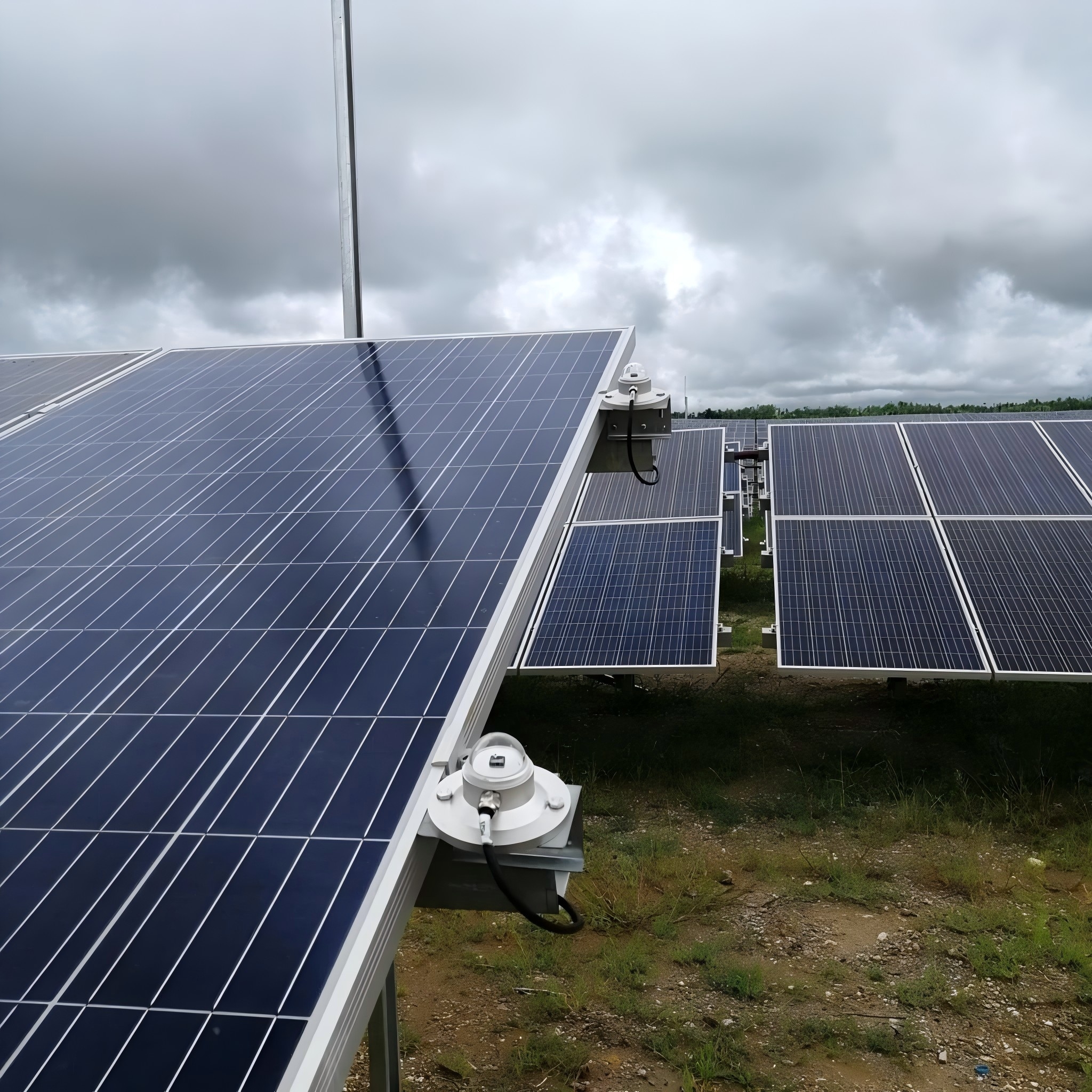

Solar irradiance is the amount of sunlight that strikes the surface of solar panels, directly influencing their power generation capacity. Weather stations equipped with pyranometers are designed to measure solar irradiance in real-time, providing critical data about the intensity of sunlight at various times of the day.

This data is vital for:

• Optimizing Solar Panel Efficiency: By tracking irradiance, weather stations help PV system operators ensure their panels are receiving the optimal amount of sunlight throughout the day.

• Adjusting Panel Orientation: Solar power plants may adjust the angle of the panels based on real-time solar irradiance data, optimizing the capture of sunlight during different seasons.

• Predicting Energy Output: With accurate solar irradiance data, operators can predict expected power generation and adjust operational strategies accordingly.

In regions with fluctuating sunlight, such as during cloudy days or seasonal variations, solar irradiance monitoring helps to understand and compensate for any potential energy losses.

2. Temperature and Humidity Monitoring

Both ambient temperature and humidity significantly impact the performance and longevity of photovoltaic systems.

• Temperature Impact on Solar Panels: High temperatures can lead to reduced photovoltaic efficiency, as solar panels lose their ability to convert sunlight into electricity efficiently when exposed to excessive heat. Weather stations monitor ambient temperatures to identify periods of high heat that could reduce panel performance. Some advanced weather stations also use infrared sensors to measure the temperature of the panels themselves.

• Humidity and Condensation: High humidity can lead to condensation on solar panels and other system components. Over time, this can cause corrosion, especially in areas with saltwater exposure (e.g., coastal locations). Humidity sensors help operators monitor the moisture levels in the environment to prevent damage.

With this data, solar plant operators can implement cooling strategies, adjust panel placement, or schedule routine maintenance to address any heat- or moisture-related issues.

3. Wind Speed and Direction

Extreme wind conditions can cause physical damage to solar panels, inverters, and other critical components of a photovoltaic system, particularly in coastal or storm-prone areas. Weather stations with anemometers provide real-time measurements of wind speed and direction, which help operators:

• Prevent Wind-Related Damage: High winds can dislodge solar panels, cause frame damage, or create vibrations that could affect the structural integrity of the system. By knowing the wind conditions in advance, operators can shut down systems or deploy protective measures, such as securing the panels.

• Optimize System Placement: Wind speed and direction data is used to determine the best placement for solar arrays, ensuring they are not exposed to wind forces that could cause long-term damage.

Additionally, weather stations with wind direction sensors can help optimize the panel orientation to minimize wind resistance and improve overall efficiency.

4. Precipitation and Snowfall Monitoring

Weather stations equipped with rain gauges and snow sensors provide valuable data on precipitation levels, which directly impact solar panel performance.

• Rainfall: Moderate rainfall can help clean solar panels by washing away dirt and dust. However, prolonged or heavy rain can reduce the amount of sunlight reaching the panels, decreasing energy production. With real-time rain data, operators can forecast potential decreases in energy production and plan for maintenance or cleaning activities.

• Snowfall: Snow accumulation on solar panels can significantly reduce energy production by blocking sunlight from reaching the panels. Snow cover can also cause physical damage if it remains on panels for too long, potentially leading to cracks or other forms of wear. By monitoring snow accumulation, weather stations allow operators to schedule cleaning or take proactive steps to remove snow build-up from panels.

5. Atmospheric Pressure and Air Quality

Atmospheric pressure and air quality affect solar panel performance, particularly in high-altitude locations or polluted areas.

• Atmospheric Pressure: At higher altitudes, lower atmospheric pressure can lead to higher solar panel efficiency due to the thinner atmosphere, allowing more sunlight to reach the panels. Weather stations monitor atmospheric pressure changes to adjust system parameters accordingly and optimize power output.

• Air Quality: Airborne particles such as dust, smoke, or pollutants can decrease solar panel efficiency by accumulating on the surface of the panels and blocking sunlight. Air quality sensors in weather stations provide real-time data about the concentration of pollutants and particles in the air, enabling solar operators to schedule regular cleaning and maintenance.

6. Early Warning for Severe Weather Events

Weather stations are equipped with advanced forecasting tools that can provide early warnings about severe weather events, such as thunderstorms, hurricanes, or blizzards. Early warnings are crucial for solar power plant operators because:

• Prevention of System Shutdown: By knowing in advance about a coming storm or extreme weather, operators can preemptively shut down parts of the system to protect the equipment from wind, hail, or lightning strikes.

• Minimizing Damage: Early warnings allow solar power plants to implement safety protocols, such as reinforcing equipment or temporarily disabling parts of the system to prevent physical damage during extreme conditions.

Having a robust weather station with early warning capabilities can significantly reduce maintenance costs and prevent unplanned system downtimes.

7. Data Integration and Predictive Analysis

Modern weather stations not only collect environmental data but also allow for integration with other monitoring systems within the solar plant. This integrated data helps create a comprehensive overview of how weather influences the performance of the PV system over time. Key benefits include:

• Predictive Analytics: By combining historical weather data with system performance metrics, operators can predict energy production based on future weather patterns.

• Performance Optimization: Through data analytics, operators can identify trends and patterns that allow them to optimize operational strategies, such as adjusting panel angles, cleaning schedules, and maintenance intervals to maximize output.

Conclusion

Weather stations are indispensable for the photovoltaic power generation industry, as they provide real-time, actionable data on critical environmental parameters that directly influence solar energy production. By monitoring solar irradiance, temperature, wind speed, humidity, precipitation, and other factors, weather stations help solar power plants optimize performance, prevent damage, and improve efficiency. As the demand for renewable energy continues to grow, weather stations will play an even more significant role in ensuring the reliability and long-term sustainability of solar power systems.
