How Does an Anemometer Measure Wind Speed?

How Does an Anemometer Measure Wind Speed?

An anemometer is an essential instrument for measuring wind speed and direction, widely used in meteorology, environmental monitoring, industrial safety, and renewable energy applications. Knowing how an anemometer works can help users pick the right type for their needs. This ensures accurate wind measurements.

Types of Anemometers and How They Measure Wind Speed

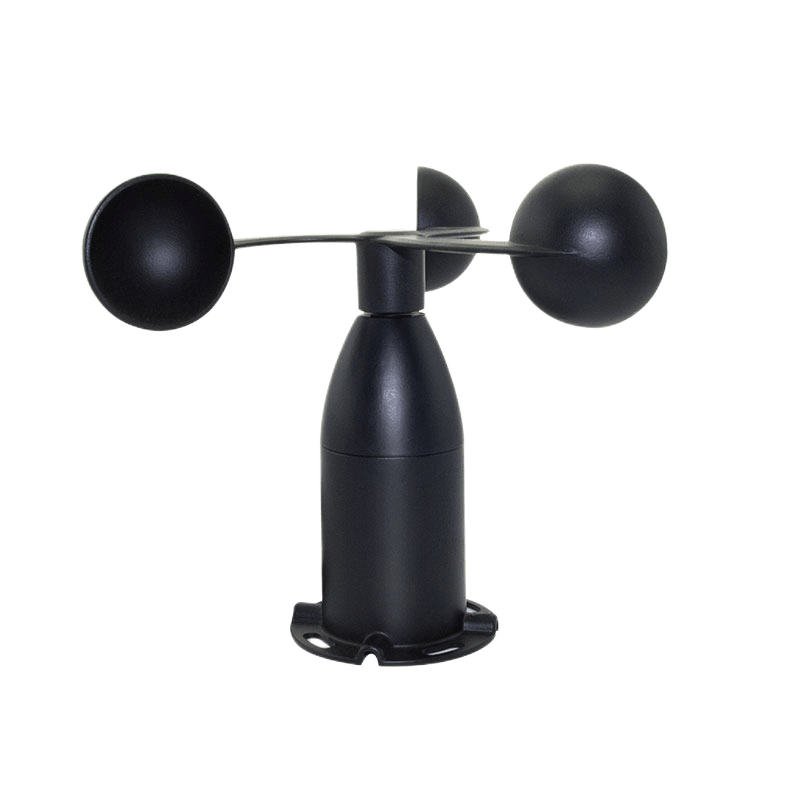

1. Cup Anemometer

A cup anemometer has three or four round cups. These cups are on horizontal arms that connect to a vertical shaft. When the wind gusts, the cups rotate around the center. The wind's intensity determines the velocity of their rotation.

A sensor in the anemometer changes the rotation speed into electrical signals. These signals are then turned into wind speed measurements. Cup anemometers are widely used in weather stations and wind farms due to their reliability and simplicity.

2. Vane Anemometer

A vane anemometer, also known as a propeller anemometer, uses a rotating propeller to measure wind speed. The propeller turns as air flows through it, and the speed of rotation determines the wind velocity. These anemometers often include a wind vane to indicate wind direction. People commonly use vane anemometers in HVAC (Heating, Ventilation, and Air Conditioning) systems, air quality monitoring, and field research.

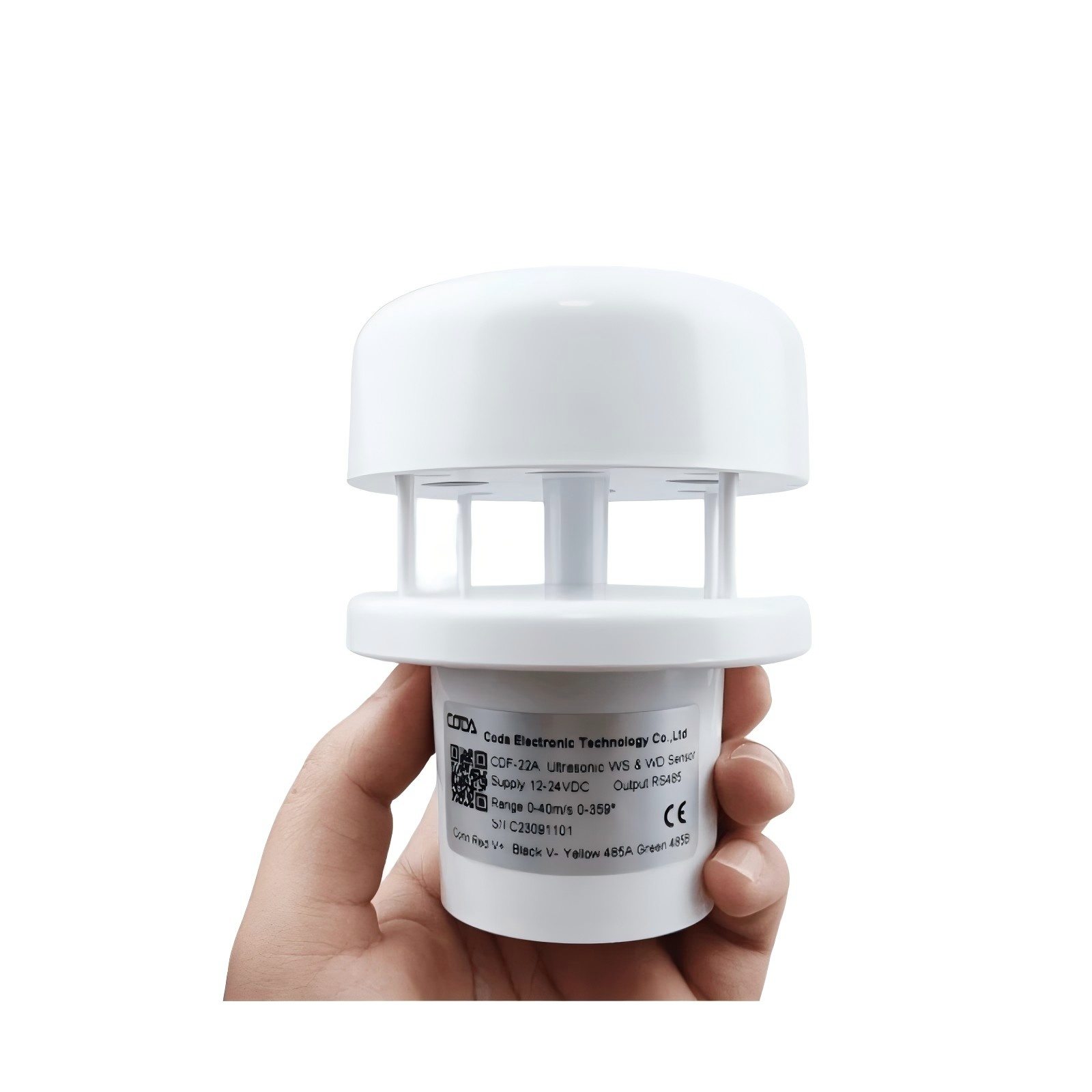

3. Ultrasonic Anemometer

Ultrasonic anemometers measure wind speed using high-frequency sound waves. The device has multiple transducers that send ultrasonic pulses in different directions.

The time it takes for the pulses to travel between the transducers changes based on wind movement. By analyzing these time variations, the anemometer calculates wind speed and direction with high precision. Ultrasonic anemometers are highly accurate, maintenance-free, and suitable for harsh weather conditions, making them ideal for meteorology, aviation, and marine applications.

4. Hot Wire Anemometer

A hot wire anemometer measures wind speed by detecting changes in heat loss. A thin wire inside the device is heated electronically, and as air passes over the wire, it cools down. The rate of cooling is proportional to the wind speed, and this data is converted into velocity measurements. Hot wire anemometers are highly sensitive and are often used in laboratories, wind tunnel experiments, and airflow studies.

5. Laser Doppler Anemometer

This advanced anemometer uses laser beams to measure wind speed. When a laser beam passes through moving air particles, the frequency of the light shifts because of the Doppler effect. By analyzing these frequency shifts, the device determines the wind speed with extreme accuracy. Researchers typically use laser Doppler anemometers in scientific research, aerodynamics testing, and precision airflow measurement.

6. Pitot Tube Anemometer

A Pitot tube anemometer measures wind speed based on pressure differences. As wind flows through a tube with an opening, researchers use the pressure changes to determine wind velocity. People commonly use these anemometers in aviation, aerodynamics, and industrial airflow monitoring.

Factors Affecting Anemometer Accuracy

• Environmental Conditions: Dust, ice, and precipitation can affect the performance of mechanical and ultrasonic anemometers.

• Installation Location: Proper placement at an appropriate height ensures accurate readings and minimizes interference from obstacles.

• Regular Calibration: Periodic calibration maintains the precision of the anemometer and ensures consistent performance.

• Maintenance Requirements: Mechanical anemometers require more maintenance because of moving parts, while ultrasonic models need occasional cleaning to prevent dirt buildup.

• Temperature and Humidity Effects: Some anemometers, especially hot wire types, are sensitive to changes in temperature and humidity. These changes can affect their readings.

Applications of Anemometers

• Weather Stations: Used for meteorological data collection, weather forecasting, and climate research.

• Renewable Energy: Essential for wind farm operation, site assessment, and efficiency optimization.

• Aviation & Marine Navigation: Helps pilots and ship captains monitor wind conditions for safe operations.

• Industrial Safety: Used in construction sites, mines, and hazardous environments to ensure safety.

• Smart Agriculture: Helps farmers optimize irrigation, pest control, and crop protection based on wind conditions.

• HVAC and Airflow Testing: Ensures proper ventilation and air quality in buildings and industrial settings.

• Sports and Outdoor Activities: Used in sailing, paragliding, and drone operations to measure wind conditions.

Coda Sensor: Providing High-Quality Anemometers

Coda Sensor provides many types of anemometers. These include ultrasonic, mechanical, and high-precision laser Doppler models. They ensure accurate wind speed measurement for different industries.

Coda Sensor offers innovative and accurate solutions. You can find high-precision data for weather, strong sensors for industry, or affordable options for environmental monitoring. Coda Sensor is dedicated to using advanced technology and ensuring quality. We help businesses and researchers get the best wind measurement results.

Conclusion

Anemometers play a crucial role in wind measurement across different fields. By understanding how various anemometers work, users can select the best model for their specific application.

Coda Sensor offers high-quality solutions for all your wind measurement needs. You might need different types of anemometers. We have cup anemometers for weather stations.

We also offer ultrasonic models for accurate monitoring. If you need a laser Doppler device for research, we have that too. Choosing the right anemometer ensures accurate, reliable, and efficient wind monitoring for a wide range of applications.
