CODA Sensors: Elevating Performance Monitoring in the Solar PV Industry

The efficiency and long-term profitability of any Solar Power Plant are intrinsically linked to the precision of its meteorological data. Meeting the stringent requirements of the IEC 61724-1 Standard and accurately calculating the Performance Ratio (PR) demands reliable, high-quality sensing technology.

CODA provides a specialized, integrated solution designed specifically for Solar PV Monitoring, offering the critical Environmental Data necessary for maximizing energy yield, ensuring system health, and simplifying compliance.

1. The Core Data: Irradiance and Panel Temperature

The most crucial inputs for validating PV System Performance Monitoring are solar radiation and panel temperature. CODA addresses this need with specialized instruments, ensuring every measurement counts.

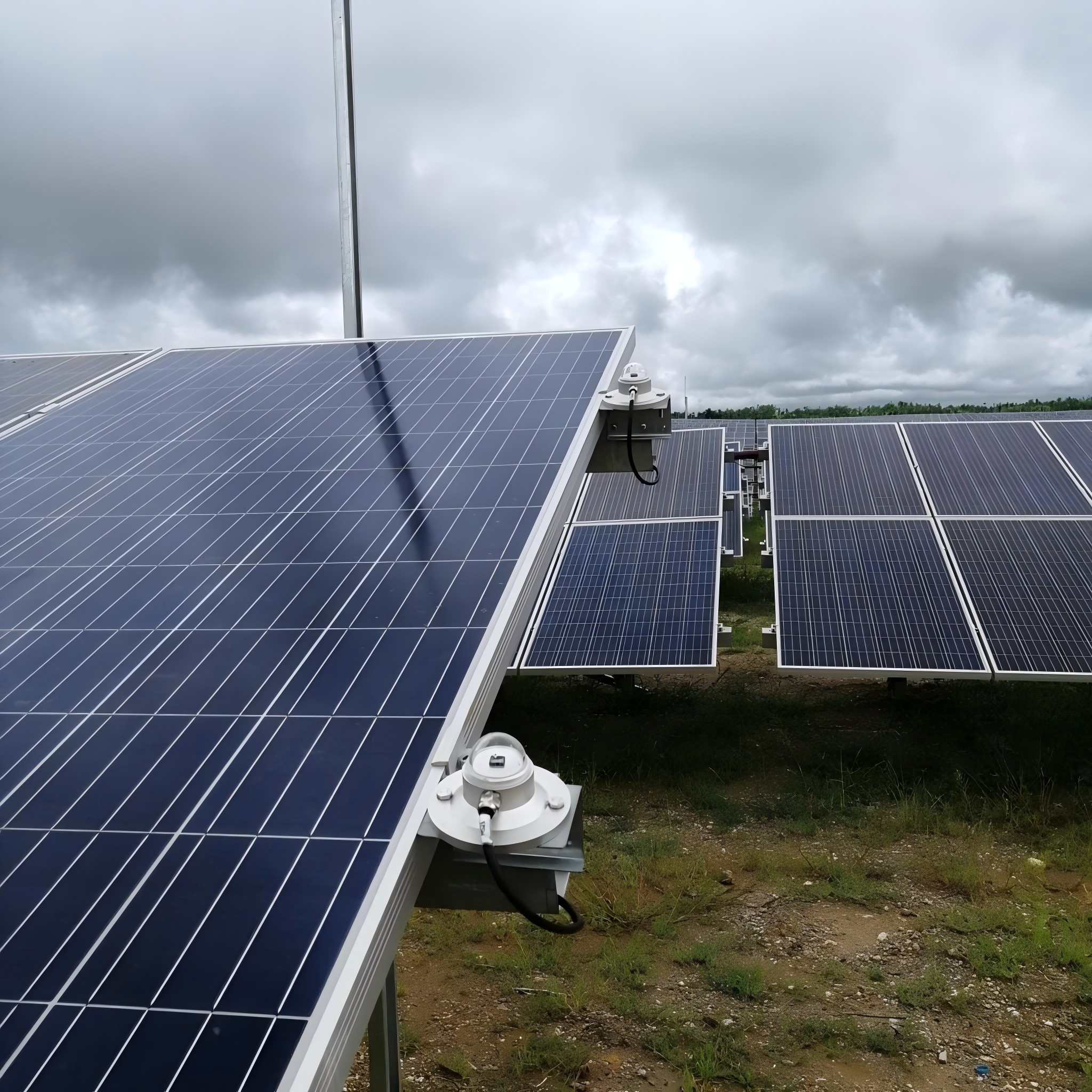

Pyranometer and Irradiance Sensor: Foundation of PR Calculation

Our Pyranometer and Irradiance Sensor are the gold standard for measuring global horizontal irradiance (GHI) and plane-of-array (POA) irradiance.

• Technology & Data: CODA's Solar Radiation Sensor is built on the robust silicon-cell principle, offering high sensitivity and long-term stability—a necessity for continuous Renewable Energy Monitoring. For instance, our professional-grade sensors feature a high resolution of across a wide measurement range of $0-1500{\text{W/m}}^2$, ensuring no solar resource fluctuation is missed.

• Application: These sensors are indispensable for calculating the theoretical maximum power output of the array, allowing operators to accurately determine the true Performance Ratio (PR). We also offer specialized solutions, such as the Reference Cell, which uses PV material for panel-specific irradiance measurement, crucial for modern Bifacial PV setups where accurate POA readings are complex.

PV Temperature Sensor: Essential for Compensation and Safety

The electrical efficiency of a photovoltaic panel drops significantly as its temperature rises—a common rule of thumb is a $0.4\%$ efficiency loss for every $1^{\circ }\text{C}$ rise above $25^{\circ }\text{C}$.

• Function: Accurate PV Temperature Sensor readings are vital for applying Temperature Compensation to PR calculations, ensuring performance reports reflect true operational efficiency, not just thermal effects.

• Case Study Insight: In a large-scale project, precise temperature monitoring identified that specific arrays were consistently operating $5^{\circ }\text{C}$ hotter than surrounding modules due to poor ventilation, which translated directly to an estimated $2.0\%$ uncompensated efficiency loss. CODA's data enabled a targeted, corrective thermal management action, swiftly restoring expected yield.

2. Comprehensive Meteorological Monitoring for PV

A complete Solar PV Monitoring solution requires more than just light and heat. A dedicated Automatic Weather Station (AWS) for solar applications integrates all necessary parameters to manage environmental risks.

The Solar Weather Station Ecosystem

Our specialized Weather Station for Solar acts as a reliable Data Logger for PV, bundling essential meteorological parameters:

• Wind Speed & Direction: Wind Speed Sensor data is essential for assessing the cooling effect on panels, which directly influences efficiency. Data is also used to assess potential structural load risks, supporting structural integrity in high-wind events.

• Rainfall: The Rainfall Sensor or Pluviometer measures precipitation for tracking soiling accumulation and scheduling panel cleaning cycles. Continuous soiling monitoring has shown that deferred cleaning based on precipitation data can improve annual ROI by $0.5\%$ compared to fixed schedules.

• Ambient Conditions: Additional sensors track ambient temperature and humidity, providing input for advanced predictive modeling.

Meeting Industry Standards

The high-resolution data collected by CODA's instruments directly supports compliance with the IEC 61724-1 Standard—the international benchmark for PV system performance. By ensuring data integrity and low uncertainty, CODA empowers operators to confidently validate their Renewable Energy Monitoring data for investors and grid operators.

Conclusion

CODA delivers more than just hardware; we deliver the precision data required to transform a Solar Power Plant into a smart, high-performing, and compliant asset. By seamlessly integrating the Pyranometer, PV Temperature Sensor, and specialized weather sensors, CODA ensures operators have the reliable metrics needed to maximize output and secure long-term asset health.
