Ultrasonic Sensors for Wind, Liquid Level, Rainfall

Introduction

In today’s era of automation and smart systems, precise environmental monitoring is essential. One of the most reliable tools enabling this is ultrasonic sensing technology. These sensors are crucial in many industries. They help with weather monitoring, smart farming, water treatment, manufacturing, and robotics.

Ultrasonic sensors use high-frequency sound waves to measure distance and detect objects. They can also monitor things like liquid levels, wind speed, and rainfall. Most importantly, they achieve this without any contact. Their non-invasive nature, high reliability, and adaptability make them increasingly popular for a wide range of applications.

In this article, we will look at how these devices work. We will explore key types of sensors. We will discuss their benefits and drawbacks. Finally, we will explain why they are essential tools for today’s environmental and industrial systems.

How Ultrasonic Sensors Work

At the core of ultrasonic technology is a simple yet powerful principle: sound wave reflection. A sensor sends out a high-frequency ultrasonic pulse.

This pulse moves through the air or another medium until it hits a surface. The sound then bounces back to the sensor. The time delay between emission and echo return is used to calculate the distance to the object or surface.

This method works well in places where direct contact is not safe or possible. This includes situations with toxic liquids, extreme temperatures, or fast systems. The technology also excels in low-visibility settings where optical or laser-based sensors might fail.

Common Types of Ultrasonic Sensors and Their Applications

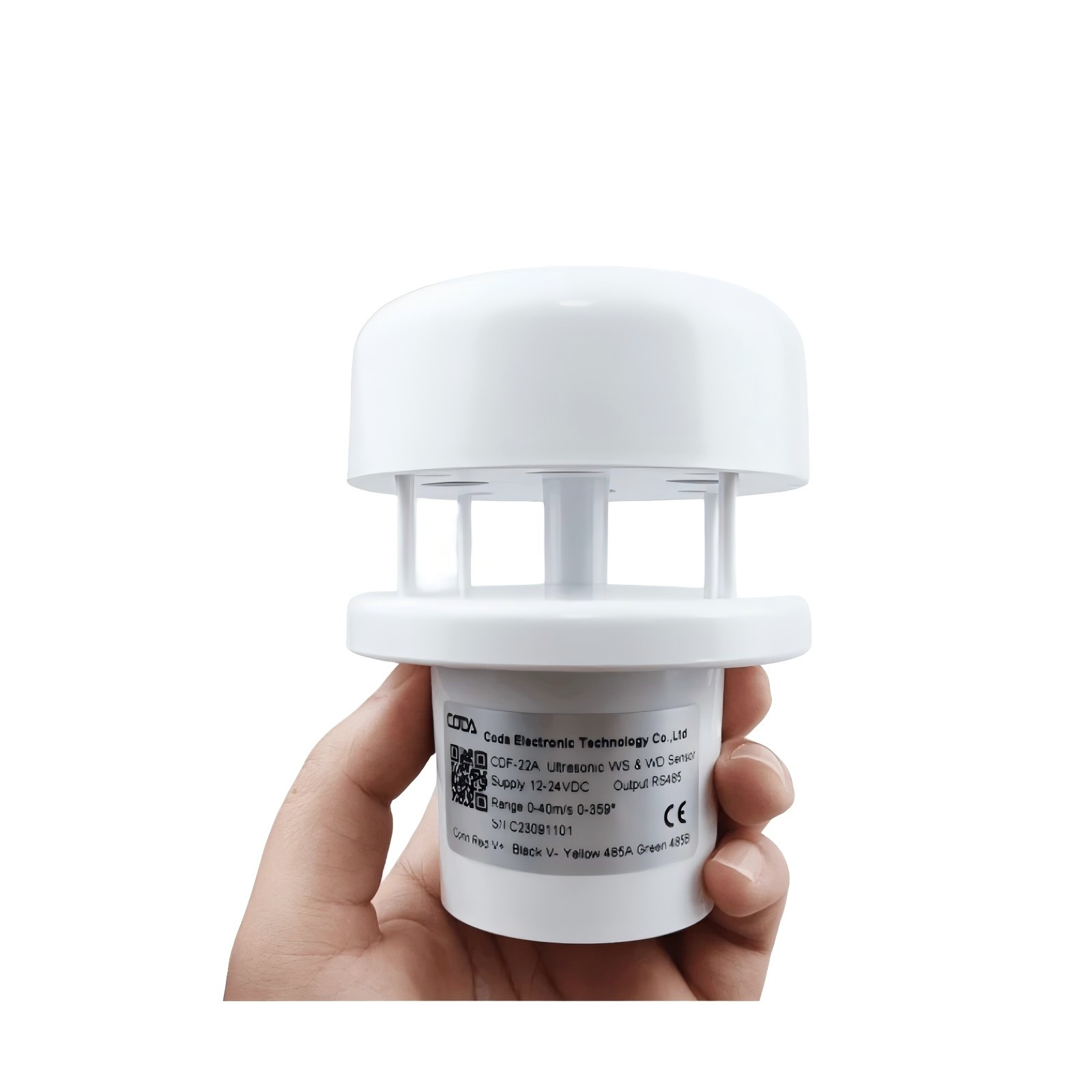

Ultrasonic Wind Sensors

Ultrasonic wind sensors, or ultrasonic anemometers, measure wind speed and direction. They do this by sending sound pulses between several transducers. The system measures how wind affects the speed of sound. This helps it accurately find the speed and direction of airflow.

Advantages:

• High precision even in turbulent wind conditions

• No moving parts, reducing mechanical failure and maintenance

• Ideal for long-term outdoor use in all weather types

Challenges:

• May require recalibration over time for optimal performance

• Susceptible to noise interference in certain environments

• Often more expensive than traditional cup or vane anemometers

These sensors are used in weather stations, solar power plants, smart cities, and coastal monitoring systems. They provide real-time wind data that is very important.

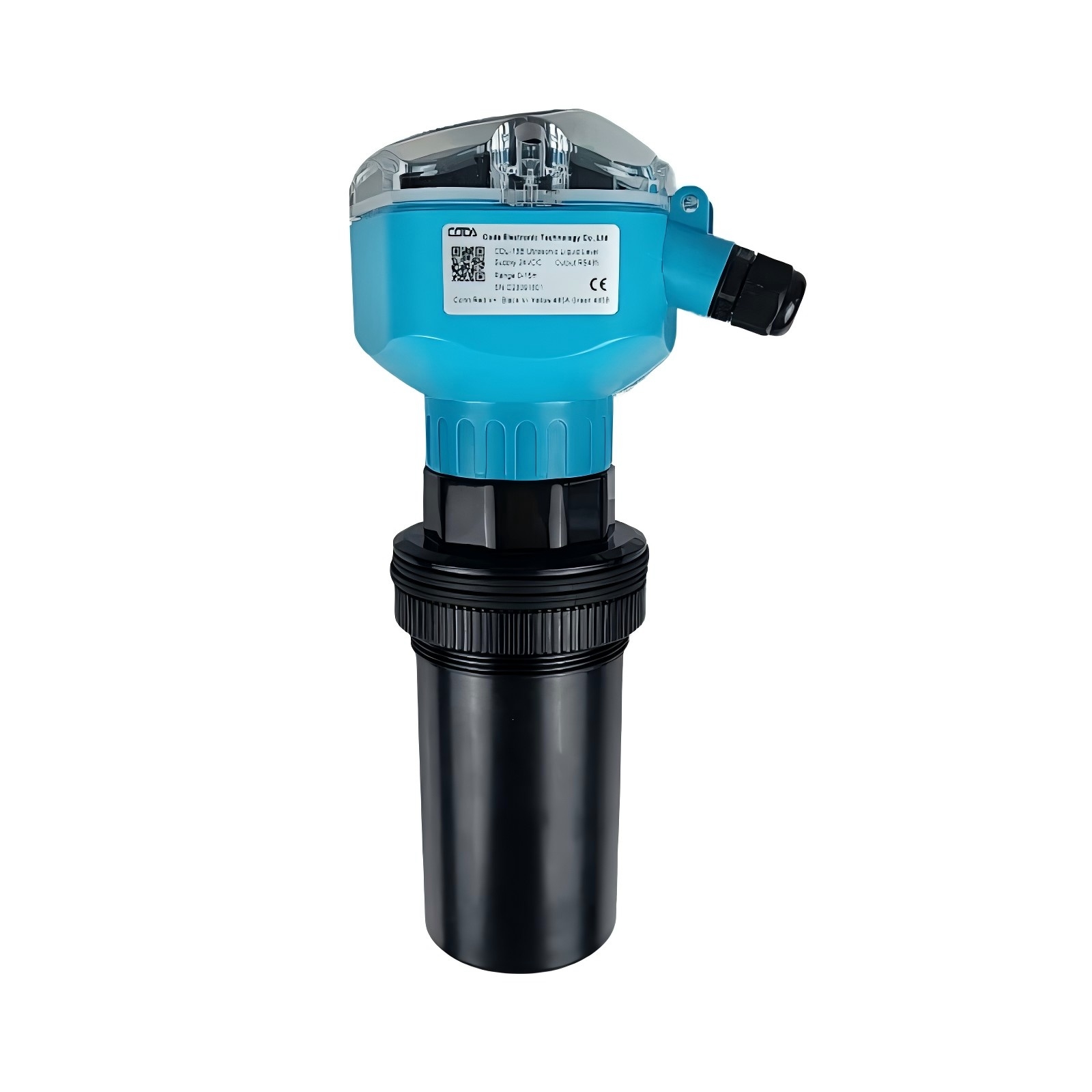

Ultrasonic Liquid Level Sensors

These sensors are widely used in tanks, reservoirs, and silos to measure fluid levels. The ultrasonic pulse goes to the liquid surface and bounces back to the sensor. This helps calculate the level accurately without touching the liquid.

Advantages:

• Suitable for aggressive, corrosive, or high-temperature liquids

• Works with various tank sizes and shapes

• Ensures continuous, real-time monitoring of fluid levels

Challenges:

• Foam, vapor, or heavy turbulence on the surface can affect readings

• Sensor faces must be kept clean for consistent results

• Environmental changes in temperature or pressure may require compensation

Common applications include water treatment plants, chemical storage, oil and gas tanks, and food processing facilities.

Ultrasonic Rainfall Sensors

Rain sensors use ultrasonic technology to measure how hard it is raining. They do this by detecting sound waves that change when raindrops hit a surface. This method enables real-time monitoring without moving parts or collection chambers.

Advantages:

• Provides instant, high-resolution rainfall data

• Works in a wide range of weather conditions

• Can be integrated into weather stations and hydrological monitoring systems

Challenges:

• Accuracy may be affected by hail, snow, or strong wind

• Generally more expensive than traditional rain gauges

• Requires proper positioning and calibration for optimal results

These sensors are especially useful in remote weather stations, smart irrigation systems, and flood forecasting infrastructure.

Ultrasonic Distance and Object Detection Sensors

These general-purpose sensors are used in applications ranging from parking assistance to robotics and industrial automation. They detect obstacles, measure distances, and support autonomous systems by providing reliable proximity data.

Advantages:

• Performs well in dark, dusty, or foggy environments

• Highly adaptable to both static and moving target detection

• Easily integrated into IoT and industrial automation systems

Challenges:

• May struggle with sound-absorbent materials like fabric or foam

• Sound reflection from small or oddly shaped objects is unpredictable.

• Environmental factors like temperature and humidity may impact results slightly

This sensor type is commonly found in autonomous robots, warehouse automation, smart bins, and safety monitoring systems.

Why Choose Ultrasonic Sensing?

Benefits of Ultrasonic Sensors

Non-Contact Operation

One of the most attractive features is their ability to measure or detect without touching the target. This is especially important in hazardous environments or where hygiene and cleanliness are crucial.

High Accuracy and Repeatability

Ultrasonic sensing offers reliable data across a wide range of conditions. Many industrial sensors are capable of millimeter-level accuracy, providing the consistency needed for precision tasks.

Adaptability to Harsh Environments

Many manufacturers create models to handle extreme temperatures, moisture, dust, and vibrations. This makes them great for outdoor and industrial use.

Long Lifespan with Low Maintenance

Because they have no moving parts, ultrasonic units experience less wear and tear compared to mechanical devices. This translates to fewer replacements and lower maintenance costs over time.

Cross-Industry Applications

These sensors are useful in many areas. They help in agriculture, environmental monitoring, smart cities, and robotics. This makes them a smart and cost-effective choice for many industries.

Potential Drawbacks to Consider

Environmental Sensitivity

While quite robust, performance can still be influenced by extreme weather or atmospheric changes. Adjustments or compensations may be needed in some setups.

Surface Limitations

The surface of the measured object or liquid can affect accuracy. For instance, foamy, soft, or sloped surfaces may distort or absorb the signal, leading to inconsistent results.

Shorter Detection Range Compared to Radar

Ultrasonic technology works well for mid-range measurements. However, it may not be effective for extreme long distances or thick obstacles. Radar or laser alternatives may be better in such cases.

Initial Investment

High-precision ultrasonic models are cost-effective over time. However, they often have a higher initial cost than simpler sensors. This is especially true for models that monitor wind or rainfall.

Real-World Impact and Use Cases

• In Smart Agriculture, ultrasonic sensors monitor irrigation levels, detect rainfall, and automate spraying systems, improving crop yield and resource efficiency.

• In Renewable Energy, wind sensors help optimize the operation of wind turbines and solar trackers.

• In Environmental Protection, sensors contribute to flood alerts, air quality stations, and water resource management.

• In Industrial Automation, object detection and distance measurement support robotics, assembly lines, and warehouse systems.

The technology improves measurement accuracy. It also makes operations safer, more efficient, and helps with data-driven decisions.

Conclusion

Ultrasonic sensing technology continues to evolve, offering a safe, accurate, and versatile method for monitoring and measuring across multiple industries. Whether you're tracking wind velocity, monitoring fluid levels, measuring rainfall, or detecting objects, these sensors provide critical data without physical interference.

While not without limitations, their advantages far outweigh the drawbacks when properly implemented. Choosing the right sensor for your environment and application is key to unlocking their full potential.

At Coda Sensor, we offer a range of high-quality ultrasonic sensing solutions customized for diverse industrial needs. Our expertise in weather monitoring, environmental sensing, and automation can help you build smarter systems and more responsive infrastructures.
