Understanding Pyranometers and Solar Radiation Sensors

In the field of solar energy and environmental monitoring, pyranometers and solar radiation sensors play a crucial role in measuring sunlight intensity and evaluating solar energy potential. These instruments are essential for applications ranging from photovoltaic (PV) power generation to climate research and agricultural optimization.

What is a Pyranometer?

A pyranometer is a type of solar radiation sensor specifically designed to measure global solar radiation on a flat surface. It quantifies the total shortwave radiation received from the sun, which includes both direct sunlight and diffuse sky radiation. Pyranometers operate based on thermopile technology or photodiode sensors, with thermopile pyranometers being more accurate and widely used in scientific research and high-precision solar energy assessments.

How Does a Pyranometer Work?

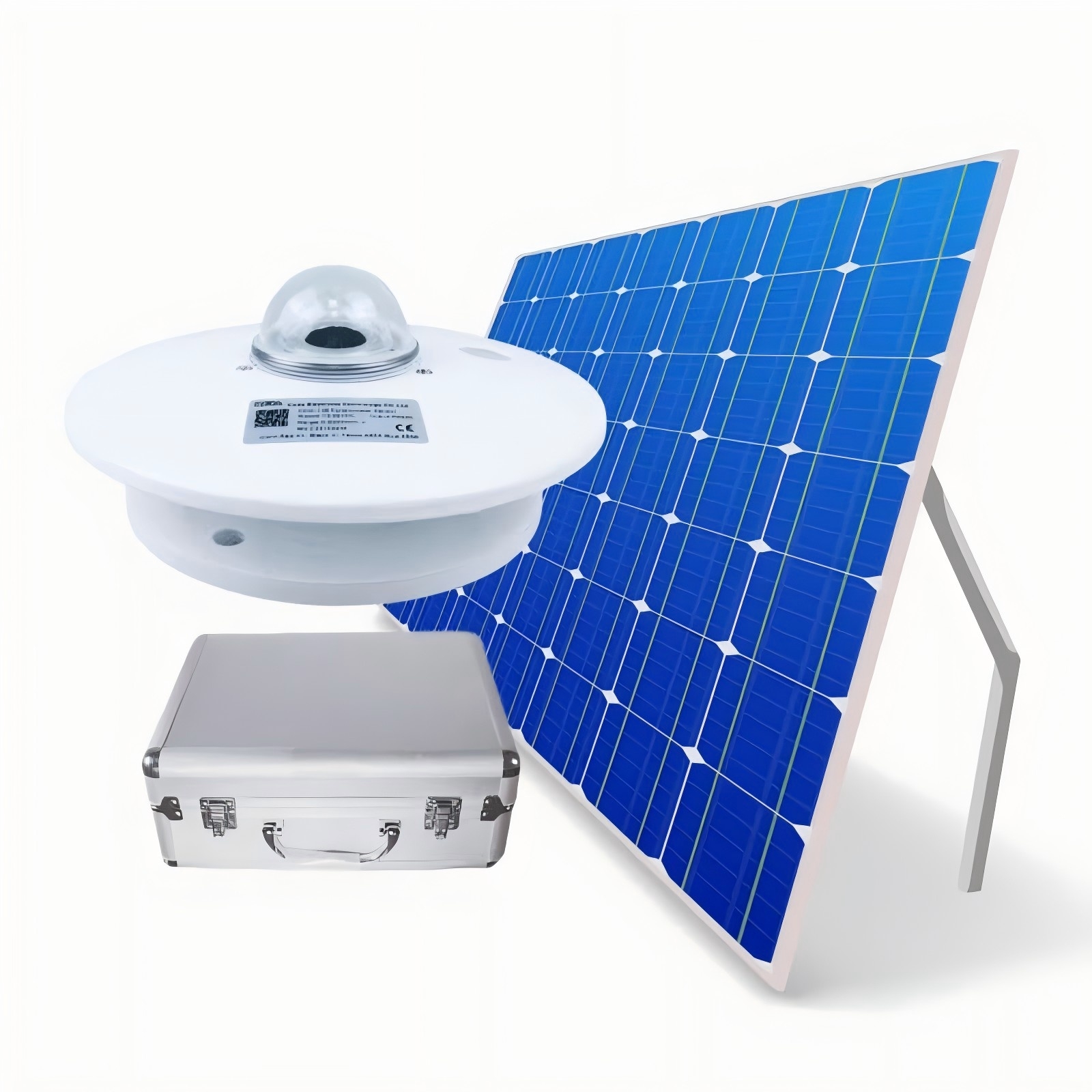

A thermopile pyranometer consists of a blackened thermopile sensor that absorbs solar radiation and converts it into an electrical signal proportional to the energy received. A transparent dome covers the sensor, protecting it from environmental factors while allowing sunlight to reach the detector. The output signal is typically expressed in watts per square meter (W/m²), indicating the amount of solar power available at a given location.

Types of Pyranometers

• First Class Pyranometers – Suitable for standard solar energy applications with moderate accuracy.

• Secondary Standard Pyranometers – Provide higher precision and are used for professional research and solar farm performance monitoring.

• ISO 9060 Spectrally Flat Class A Pyranometers – The highest accuracy class, used for meteorological and scientific research.

Solar Radiation Sensors: Overview and Applications

Solar radiation sensors are a broader category of instruments that measure solar energy in different ways. A pyranometer is one type of solar radiation sensor, but there are also pyrheliometers (which measure direct solar radiation) and net radiometers (which measure the balance between incoming and outgoing radiation).

Key Applications of Pyranometers and Solar Radiation Sensors

1. Photovoltaic Power Plants – Monitoring solar radiation helps optimize panel orientation, efficiency, and energy yield.

2. Meteorological Stations – Collecting climate data to study solar trends and weather patterns.

3. Agriculture – Assessing sunlight availability for crop growth and greenhouse management.

4. Building Energy Management – Analyzing solar exposure to improve passive solar design and HVAC efficiency.

5. Scientific Research – Studying solar irradiance for climate modeling and atmospheric studies.

Choosing the Right Solar Radiation Sensor

When selecting a pyranometer or solar radiation sensor, consider the following factors:

• Accuracy Requirements – Higher accuracy sensors are needed for research and solar plant monitoring.

• Spectral Sensitivity – Ensure the sensor covers the required wavelength range (typically 285-3000 nm for pyranometers).

• Environmental Durability – Sensors used in extreme conditions should be weatherproof and resistant to dirt and humidity.

• Data Logging and Connectivity – Integration with a data acquisition system (e.g., Modbus, RS485) is beneficial for real-time monitoring.

Conclusion

Pyranometers and solar radiation sensors are essential tools for harnessing solar energy and understanding solar radiation patterns. Their applications extend beyond the energy sector to fields such as meteorology, agriculture, and environmental science. Choosing the right sensor based on accuracy, spectral range, and application requirements ensures optimal performance and data reliability in solar energy assessments.
