How Do Soil Moisture Sensors Work?

How Do Soil Moisture Sensors Work?

Soil moisture sensors are indispensable tools in modern agriculture, horticulture, and environmental monitoring. They provide critical data on the water content in soil, enabling efficient water management, improved crop yields, and sustainable practices. Understanding how these sensors work, their types, and their applications can help users make informed decisions about irrigation and resource conservation. This article delves into the principles behind soil moisture sensors, explores their various types, and highlights their practical uses, concluding with an introduction to the innovative Coda Sensor.

Principles of Soil Moisture Measurement

Soil moisture sensors measure the volumetric water content (VWC) in soil, which represents the ratio of water volume to the total volume of soil. This metric is crucial because it directly influences plant growth, soil health, and water management strategies. The sensors operate by detecting changes in the physical or electrical properties of soil that correlate with moisture levels. These properties include electrical resistance, capacitance, dielectric constant, and even the presence of hydrogen atoms.

Types of Soil Moisture Sensors

1. Resistive Sensors:

• Principle: Resistive sensors measure the electrical resistance between two electrodes embedded in the soil. Water conducts electricity, so as soil moisture increases, resistance decreases.

• Advantages: Simple design, low cost, and easy to use.

• Limitations: Susceptible to corrosion and degradation over time, and readings can be skewed by soil salinity or temperature fluctuations.

•


• Capacitive Sensors:

• Principle: These sensors measure the dielectric constant of the soil, which changes with moisture content. The sensor acts as a capacitor, with the soil as the dielectric medium. Changes in moisture alter the capacitance, which is then converted into a moisture reading.

• Advantages: Less affected by soil salinity, durable, and provides stable readings over time.

• Limitations: Requires calibration for different soil types and can be more expensive than resistive sensors.

2.


3. Time Domain Reflectometry (TDR) Sensors:

• Principle: TDR sensors send an electromagnetic pulse through a probe inserted into the soil and measure the time it takes for the pulse to reflect back. The travel time is influenced by the soil's dielectric constant, which correlates with moisture content.

• Advantages: High accuracy, suitable for a wide range of soil types, and provides real-time data.

• Limitations: Expensive and requires technical expertise to operate.

4.


5. Frequency Domain Reflectometry (FDR) Sensors:

• Principle: Similar to TDR, FDR sensors measure the frequency shift of an oscillating circuit caused by changes in the soil's dielectric properties. The frequency shift is proportional to the soil's moisture content.

• Advantages: Good accuracy, relatively easy to use, and less expensive than TDR sensors.

• Limitations: Still costlier than resistive and capacitive sensors and may require calibration.

6.


7. Neutron Probes:

• Principle: Neutron probes measure soil moisture by detecting hydrogen atoms, which are abundant in water. The probe emits neutrons that collide with hydrogen atoms, and the scattered neutrons are counted to determine moisture levels.

• Advantages: Highly accurate and capable of measuring moisture at greater depths.

• Limitations: Expensive, requires safety precautions due to radiation, and is not suitable for small-scale applications.

8.


9. Gypsum Blocks (Electrical Resistance Blocks):

• Principle: These sensors consist of two electrodes embedded in a porous gypsum block. As the block absorbs water from the soil, its electrical resistance changes, providing an indirect measure of soil moisture.

• Advantages: Low cost and simple to use.

• Limitations: Slow response time and affected by soil salinity.

Applications of Soil Moisture Sensors

Soil moisture sensors have a wide range of applications across various fields:

• Agriculture: Optimizing irrigation schedules to ensure crops receive the right amount of water, reducing water waste, and improving yield. Precision agriculture relies heavily on soil moisture data to make informed decisions.

• Horticulture: Monitoring soil moisture in gardens, greenhouses, and nurseries to maintain optimal plant health and growth conditions.

• Environmental Monitoring: Assessing soil moisture for ecological studies, drought prediction, and water resource management. These sensors are also used in climate research and flood forecasting.

• Landscaping: Ensuring efficient water use in parks, golf courses, and residential lawns, reducing water consumption while maintaining aesthetic appeal.

• Research and Education: Soil moisture sensors are widely used in scientific studies and educational programs to teach students about soil-water interactions and sustainable practices.

Challenges and Considerations

While soil moisture sensors offer numerous benefits, there are challenges to consider:

• Calibration: Sensors often require calibration for specific soil types to ensure accurate readings.

• Environmental Factors: Temperature, soil salinity, and soil composition can affect sensor performance.

• Durability: Some sensors, particularly resistive ones, may degrade over time due to corrosion or wear.

• Cost: High-precision sensors like TDR and neutron probes can be expensive, making them less accessible for small-scale users.

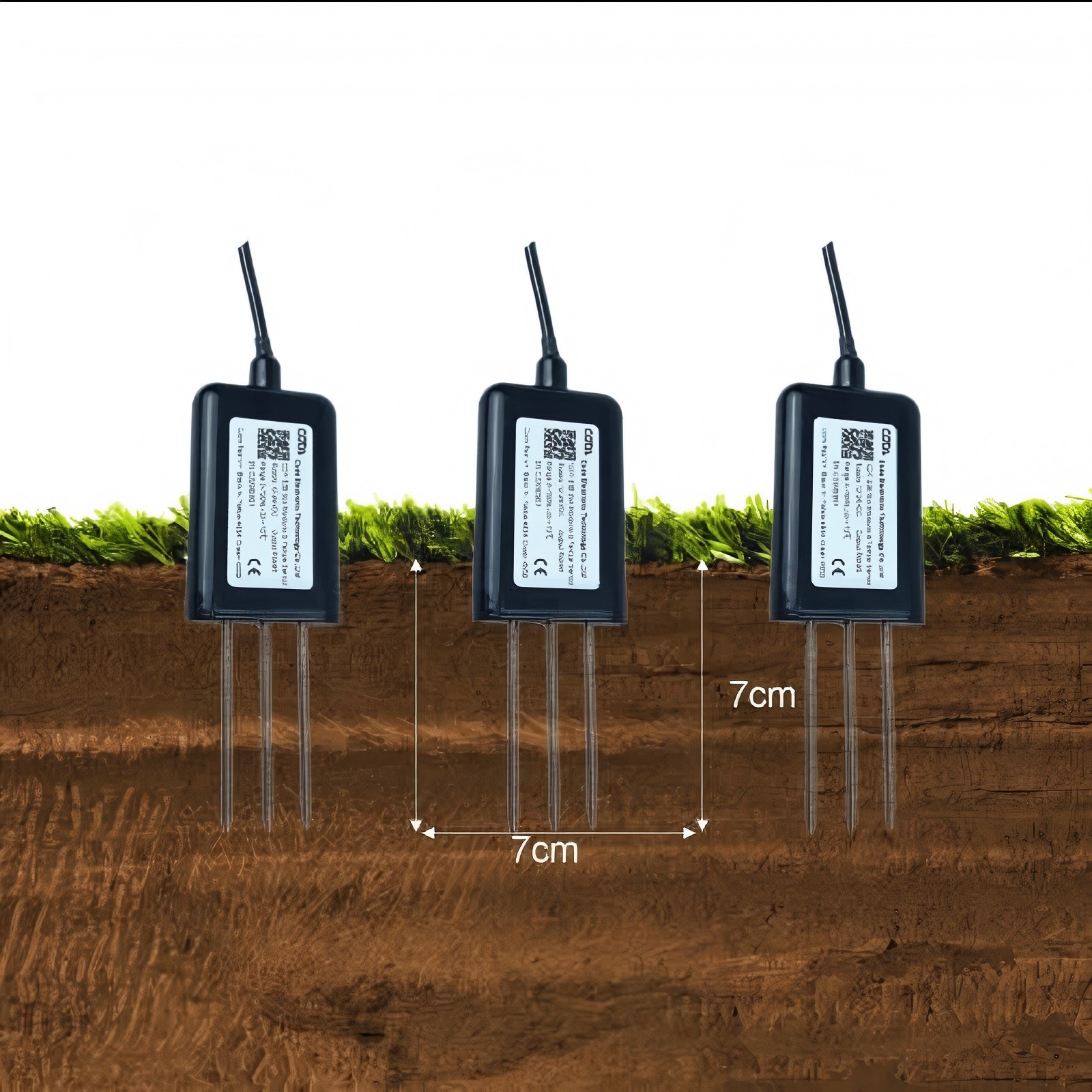

Introducing the Coda Sensor

In the evolving landscape of soil moisture sensing technology, the Coda Sensor stands out as a cutting-edge solution. Designed to address the limitations of traditional sensors, the Coda Sensor combines advanced materials, wireless connectivity, and user-friendly features to deliver precise and reliable soil moisture data.

•


• Key Features:

• High Accuracy: Utilizes advanced dielectric sensing technology to provide highly accurate moisture readings across various soil types.

• Durability: Built with corrosion-resistant materials, ensuring long-term performance even in harsh environments.

• Wireless Connectivity: Integrates with IoT platforms, allowing real-time data monitoring and remote access via smartphones or computers.

• Easy Calibration: Pre-calibrated for most soil types, with optional customization for specific applications.

• Sustainability: Designed with eco-friendly materials and low power consumption, aligning with sustainable practices.

• Applications:

• Ideal for precision agriculture, smart irrigation systems, and environmental monitoring projects.

• Suitable for both large-scale farming and small-scale gardening, making it versatile for a wide range of users.

Conclusion

Soil moisture sensors are vital tools for managing water resources, enhancing agricultural productivity, and promoting environmental sustainability. By understanding the principles behind these sensors and their various types, users can select the right technology for their needs. From simple resistive sensors to advanced TDR and FDR systems, each type has its strengths and limitations.

As technology continues to evolve, innovative solutions like the Coda Sensor are pushing the boundaries of what soil moisture sensors can achieve. With its high accuracy, durability, and seamless integration with modern IoT platforms, the Coda Sensor represents the future of soil moisture monitoring, empowering users to make smarter, data-driven decisions for a more sustainable world. Whether you're a farmer, researcher, or gardening enthusiast, embracing advanced soil moisture sensing technology can help you optimize water use, improve yields, and contribute to a healthier planet.
