Understanding the 3-Cup Anemometer: A Reliable Tool for Measuring Wind Speed

Wind plays a crucial role in various industries, from meteorology and environmental monitoring to renewable energy and aviation. Accurately measuring wind speed is essential for weather forecasting, safety applications, and optimizing the performance of wind turbines. One of the most widely used devices for this purpose is the 3-cup anemometer—a simple yet highly effective instrument designed to measure wind speed with precision and reliability.

What is a 3-Cup Anemometer?

A 3-cup anemometer is a mechanical device used to measure wind speed by capturing the force of the wind in three hemispherical or conical cups mounted on horizontal arms. These arms are connected to a central rotating shaft, which spins as the wind pushes against the cups. The rotation speed of the shaft is directly proportional to the wind speed, allowing the device to provide accurate and continuous measurements.

This type of anemometer is widely used in meteorological stations, wind farms, industrial applications, and research settings due to its durability, ease of use, and reliable performance.

How Does a 3-Cup Anemometer Work?

The 3-cup anemometer operates on a straightforward principle:

1. Wind Interaction: As the wind blows, it pushes against the cups. Since the cups are arranged in a circular pattern, the wind always exerts more force on one side than the other, causing the assembly to rotate.

2. Rotation Measurement: The speed at which the cups rotate is directly proportional to the wind speed. The faster the wind blows, the faster the cups spin.

3. Data Conversion: The rotational speed is converted into wind speed using a pre-determined calibration factor. Some modern anemometers use electronic sensors (such as magnetic or optical encoders) to detect rotations and provide digital outputs for real-time monitoring.

Advantages of the 3-Cup Anemometer

The 3-cup anemometer is one of the most popular wind speed measurement tools due to its many advantages:

• High Accuracy: Provides precise wind speed readings, making it suitable for meteorological applications and scientific research.

• Durability: Can withstand harsh weather conditions, including extreme winds, rain, and snow.

• Simplicity: Unlike more complex wind sensors, the 3-cup anemometer has a straightforward design with minimal maintenance requirements.

• Omni-Directional Measurement: Since the cups are symmetrically arranged, the anemometer can measure wind speed from any direction without the need for realignment.

Applications of the 3-Cup Anemometer

The 3-cup anemometer is widely used in various fields, including:

1. Meteorology and Weather Forecasting

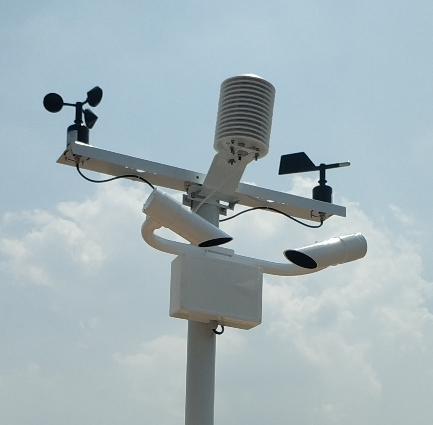

• Installed at weather stations to measure wind speed and contribute to climate studies.

• Used by meteorologists to track storms, hurricanes, and other severe weather conditions.

2. Wind Energy Industry

• Deployed on wind farms to evaluate wind conditions and optimize turbine performance.

• Helps determine the feasibility of locations for wind energy projects.

3. Aviation and Aerospace

• Used at airports to monitor wind conditions for safe takeoff and landing operations.

• Essential for space research, where wind speed data helps with launch calculations.

4. Environmental Monitoring

• Helps track air pollution dispersion by analyzing wind speed patterns.

• Used in industrial zones to ensure compliance with safety and environmental regulations.

5. Construction and High-Altitude Safety

• Monitors wind conditions on construction sites, particularly for crane operations and high-rise building projects.

• Provides real-time wind speed data to ensure worker safety in high-altitude environments.

Choosing the Right 3-Cup Anemometer

When selecting a 3-cup anemometer, several factors should be considered:

• Measurement Range: Ensure the device can accurately measure the wind speeds relevant to your application.

• Durability and Material: For outdoor and industrial applications, choose an anemometer made of corrosion-resistant materials like stainless steel or high-strength plastic.

• Data Output: Consider whether you need a mechanical anemometer with a direct readout or a digital version with remote data transmission capabilities.

• Integration with Monitoring Systems: Some anemometers can be integrated into weather stations or industrial monitoring systems for automated data collection and analysis.

Coda Sensor’s 3-Cup Anemometer Solutions

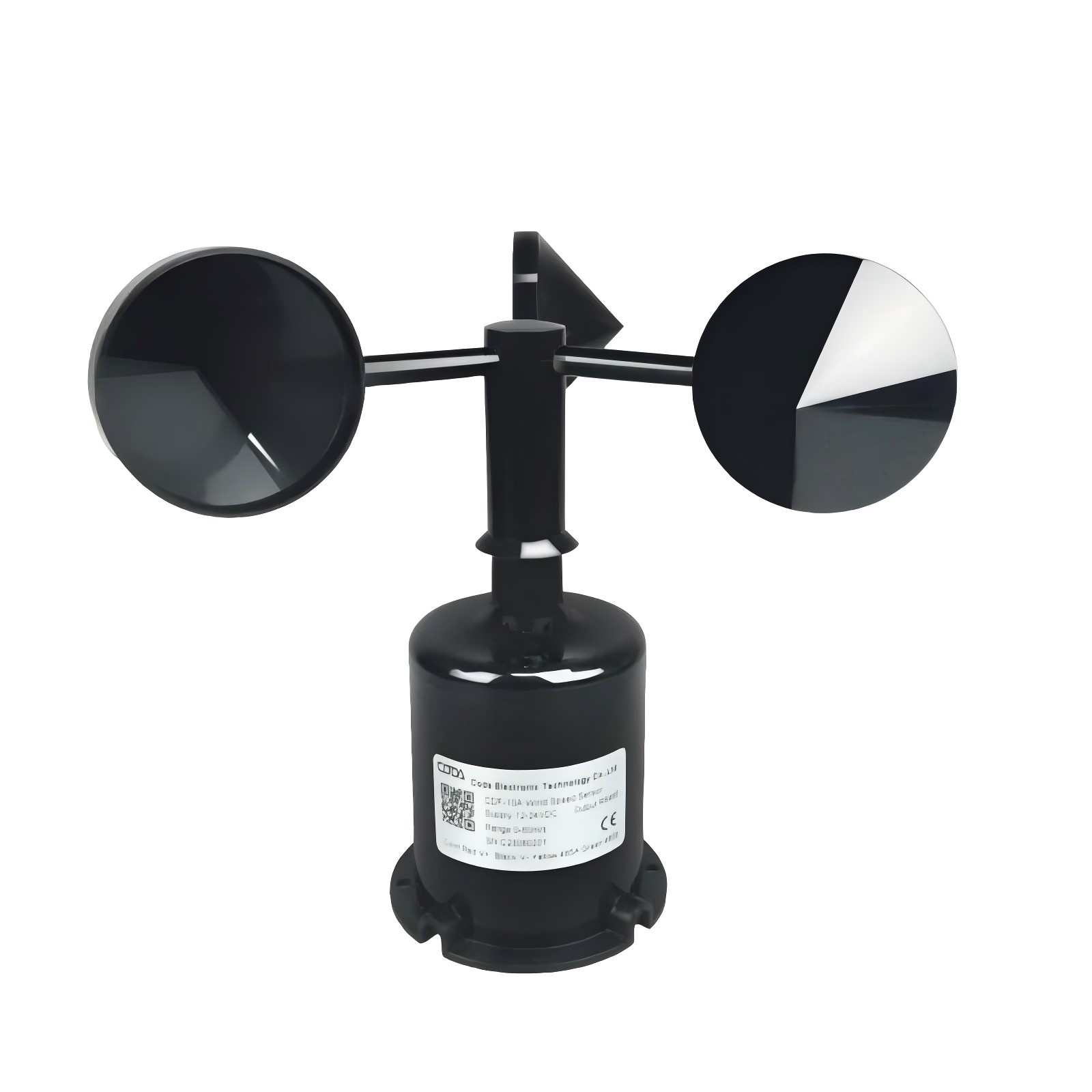

For industries that require precise and reliable wind speed measurement, Coda Sensor offers high-performance 3-cup anemometers designed for various environmental conditions. These anemometers feature:

• High-precision wind speed detection with fast response times.

• Robust construction for long-term durability in harsh weather conditions.

• Easy integration with weather monitoring stations, wind energy systems, and industrial applications.

• Remote data transmission capabilities for real-time wind monitoring.

Coda Sensor’s solutions are trusted by professionals in meteorology, renewable energy, and safety-critical industries to ensure accurate wind speed measurement for operational efficiency and environmental monitoring.

Conclusion

The 3-cup anemometer remains one of the most reliable and widely used instruments for wind speed measurement. Its simplicity, durability, and accuracy make it indispensable in meteorology, wind energy, aviation, and various industrial applications.

With advancements in sensor technology, modern 3-cup anemometers are now more efficient, offering digital outputs and remote monitoring capabilities. Companies like Coda Sensor continue to innovate, providing high-quality wind measurement solutions that help industries make data-driven decisions for safety, energy efficiency, and environmental protection.

For those looking for a trusted and high-precision wind speed measurement solution, Coda Sensor’s 3-cup anemometers are a proven choice for accurate and reliable wind data collection.
